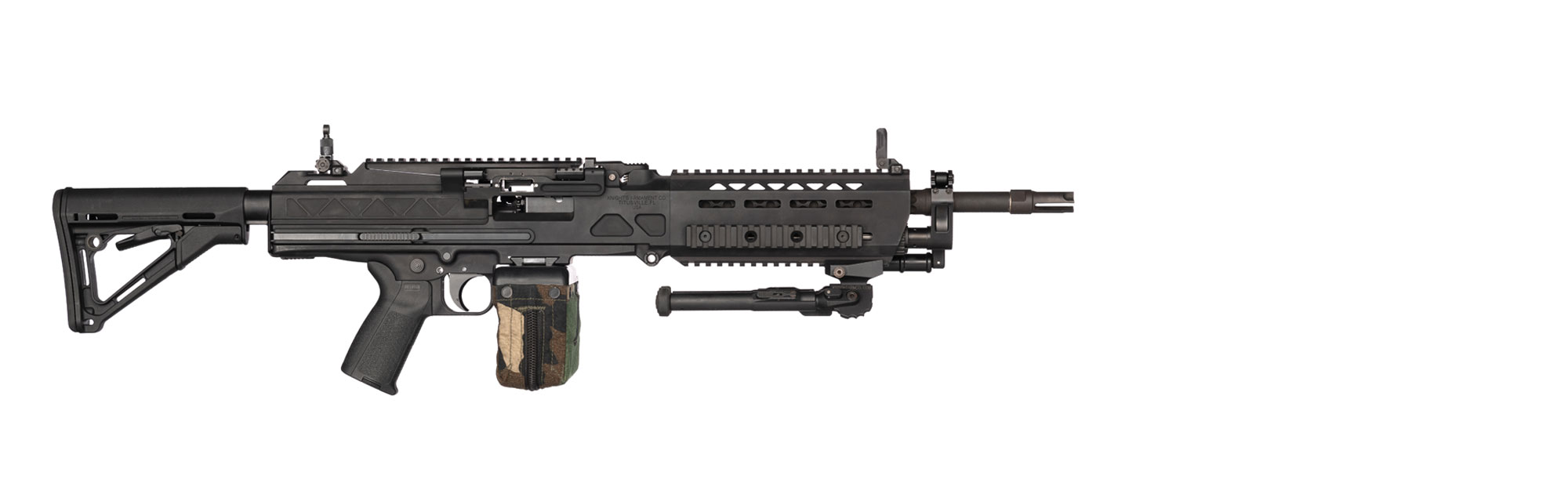

STONER KAC ASSAULT MACHINE GUN

LAMG

The 5.56mm Light Assault Machine Gun from Knight’s Armament Company delivers the needed sustained volume of fire to an assault element at a low enough weight to keep pace with an assault. With a low cyclic rate of 550-600 rounds per minute, and constant-recoil/spring run-out operation, it is more controllable than other machine guns in its class at a significantly lower weight than average. Classic machine gun features such as a quick-change barrel, compatibility with M27 links, and M249/Mk46 drum type clip attachment are standard.

Barrel: 15” (38.1cm) 1:7 Twist, Hammer Forged, Chrome Lined

Caliber: 5.56mm NATO

Weight: 11.4lbs (5.1kg)

Length: 35.5” (90cm) - 39” (99cm)

Hammer Forged 	Belt Fed Weapon 
Quick Detach Coupler 	MLOK 
Request a Quote 

Hammer Forged

Knight’s Armament employs a hammer-forging process on a number of our barrels and chambers, which serves to increase the quality of their interior finish, as well as increasing the durability and life of the barrel. These barrels are then Chrome-lined to further the lifespan of the barrel and increase its resistance to fouling and corrosion.

The first step is to take a drilled barrel and hone the interior to a fine, clean finish. The barrel is then placed onto a mandrel with the rifling pattern ground in relief across it. This setup is then placed between opposing power hammers which literally hammer the barrel onto the pattern found on the mandrel. The barrel setup is rotated and the hammers continue to forge the barrel into its final shape. Once they complete this process, the barrels are heat treated in order to relieve the inherent stress created during this process.

The Chroming process is applied after the Hammer Forging. At this point the interior of the barrel is basically lined with a layer of chrome and bonded to the forged steel. Chrome is approximately twice as hard as standard 4150 steel and also resists the lead and powder that bare steel will normally absorb into its pores. This allows the barrel to be exposed to the higher temperatures and pressures of high firing schedules while still maintaining accuracy, durability and reliability. The end result is a denser, stronger barrel that will endure a higher round life than a Standard Stainless Steel or Chrome Moly barrel.

Belt Fed Weapon

Knight’s Armament has designed and built the most controllable and lightweight machine guns in its class with the Stoner LMG. This is a belt-fed support weapon capable of suppressive or grazing fire while still being easily transportable and controllable. It is fed either from a 100-round sack or a 200-round box filled with linked 5.56 ammunition. The amount of rounds being put downrange by this type of weapon makes a magazine fed system impractical.

In a belt fed weapon, certain mechanical parts are synced together and operated by the motion of the weapon’s bolt. These parts are responsible for gripping the linked ammo belt and drawing them into the weapon’s chamber. They then reset and are ready to drag the next cartridge into place. As the bolt moves forward, the cartridge is pushed forward, out of the links, and is driven in front of the bolt face. The weapon cycles as a regular gas-impingement system will, firing the round and extracting the empty cartridge and used links. The pawl then drags the next round into place and the cycle repeats.

Quick Detach Coupler

The Quick Detach Coupler (QDC) line of Sound Suppressors and Muzzle Devices are proprietary items designed for secure interoperability. The coupling device itself consists of multiple ball bearings arrayed in a circular pattern which fit into sockets specifically machined into various muzzle devices to accept the QDC. The bearings are aligned with the sockets by way of a V-shaped notch that seats the device onto an index pin. Once aligned, a simple twist of the outer retaining ring locks the device securely into place.

This system was developed to provide fast and easy operation and interoperability between weapons and suppressors. Knight's QDC line of sound suppressors all feature this method of attachment. Various muzzle devices, such as the QDC Flash Suppressors and the MAMS muzzle break, also feature the QDC pockets to accept sound suppressors equipped with this coupling device. Secure interoperability and intelligent, efficient design are the intended goals of this quick and easy technology.

MLOK

M-LOK is a modular locking accessory mounting system that is a direct attachment method for hard mounting accessories to a negative space mounting point. The M-LOK attachment system allows the user to put mounting rails only where they were needed, as opposed to covering the entire surface with mounting rails, which are then covered with panels. The system also allows direct mounting of accessories, such as fore-grips and flashlights, with no rail interface needed.
